Balancing Crankshaft/Pulley/Flywheel

[Bijan]

Hi all,

I was just wondering how the crankshaft is balanced in the 2.4-litre engine.

Is it balanced together with the pulley and/or flywheel?

Or is everything balanced separately?

The reason I ask is that I would like to put a trigger wheel on my pulley.

Many thanks

Best regards,
Bijan

[Ribolla_67]

Hi Bijan,
This is the original workshop manual description
(Download from FChat)
First, balance without flywheel and damper.
Then repeat balancing procedure with complete assembly

[Fanalone]

Hi

To my best understanding, the cranckshaft is externally balanced by the flywheel & the harmonic balancer.

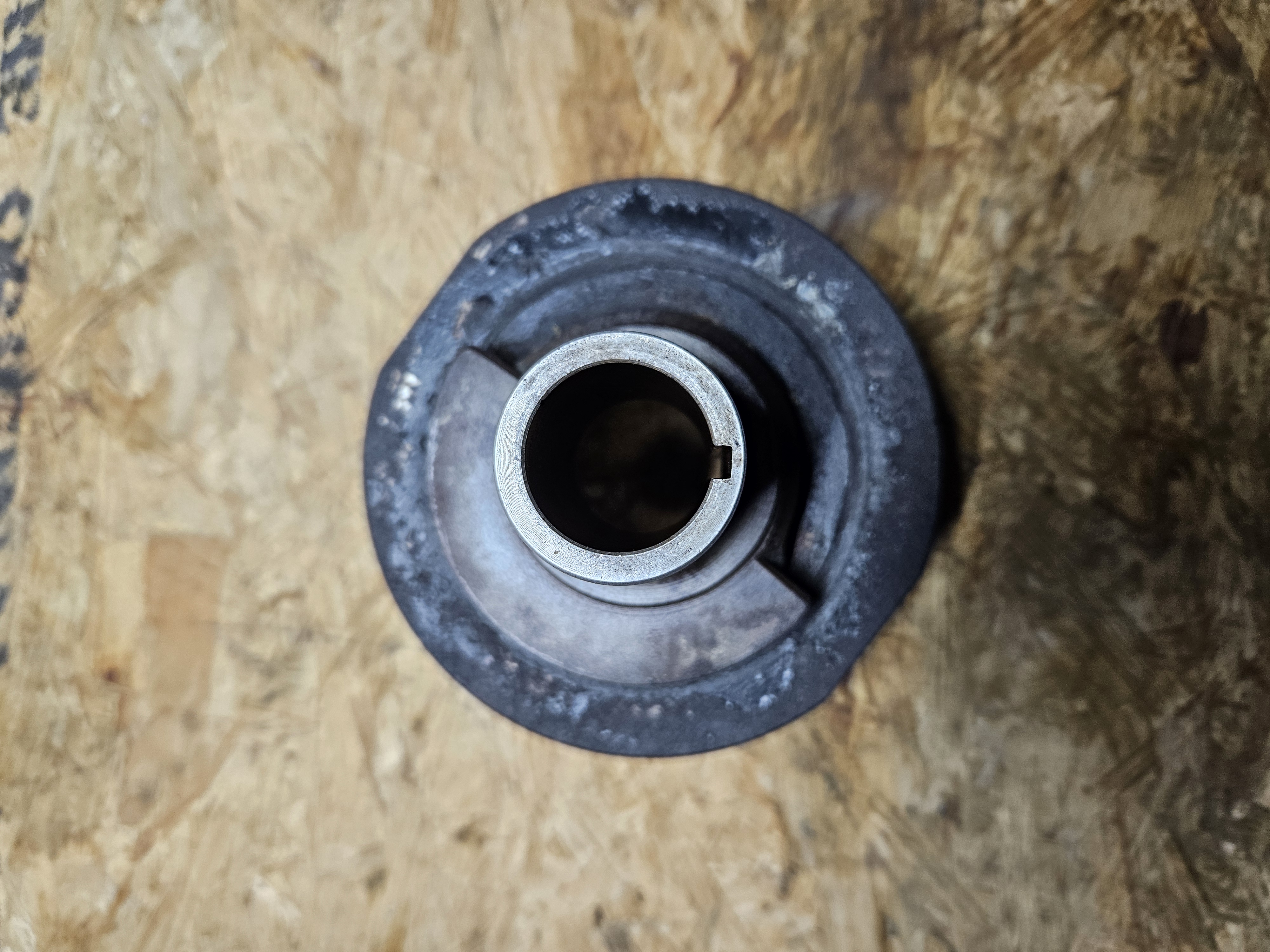

You can clearly see the counter weight`s on the backside of the flywheel & balancer.

Erik
